Description

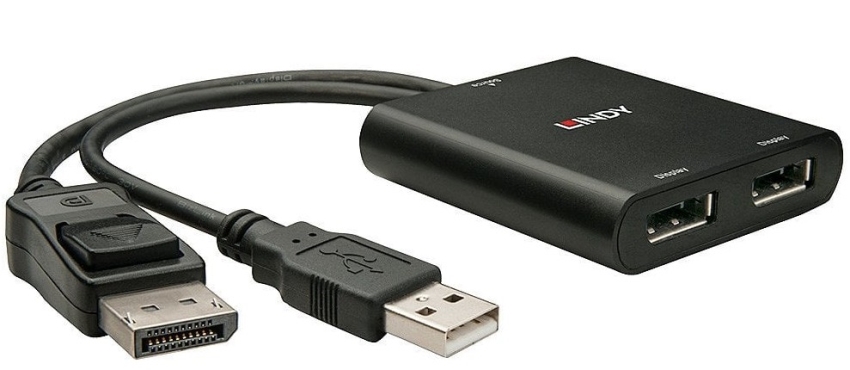

2 Port DisplayPort 1.2 MST Hub

  • Connects 2 DisplayPort displays to a DisplayPort computer or laptop
  • Expands, duplicates or displays independent DP signals over dual DP monitors
  • Supports resolutions up to 4K 60Hz, and audio up to 7.1CH
  • Compatible with various graphics cards including AMD Eyefinity, NVIDIA Surround and Intel Collage
  • 2 year warranty

MST hubs allow for the connection of a single DP source device including computers, laptops or notebooks to 2 separate DP displays, while also providing the ability to visualise content in multiple ways.

The Lindy 2 Port DP MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 2 DisplayPort monitors. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.

With support up to 3840×2160@60Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.

Please note: This hub is not compatible with Apple products

This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signals.

Specification

  • AV Interface: DisplayPort
  • Interface Standard: DP 1.2
  • Supported Bandwidth: 21.6Gbps
  • Maximum Resolution: 3840×2160@60Hz 4:4:4 8bit
  • HDCP Support: HDCP 1.3
  • Supported Audio: Up to 7.1CH
  • Separate Audio Ports: –
  • CEC Support: –
  • Serial Interface: –
  • Special Features: –

Connectors

  • Input: DisplayPort (Male)
  • Output: 2 x DisplayPort (Female)
  • Control: –
  • Power: USB Type A (Male), Bus-powered

Physical Properties

  • Dimensions (approx.) WxDxH: 58x62x14mm (2.28×2.44×0.55in)
  • Housing Material: Metal
  • Net Weight: 0.063kg (0.14lb)
  • Operating Temperature: 0°C – 45°C (32°F – 113°F)
  • Storage Temperature: -20°C – 70°C (-4°F – 158°F)
  • Humidity: 80 – 90% RH (non-condensing)
  • Power Requirements: –
  • Colour: Black

Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 150x235x20mm (5.91×9.25×0.79in)
  • Gross Weight: 0.08kg (0.18lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS, UL & REACH
